Description

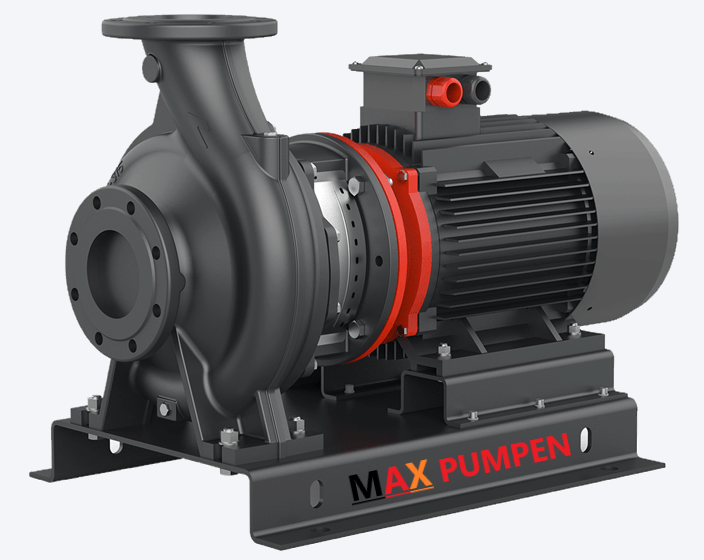

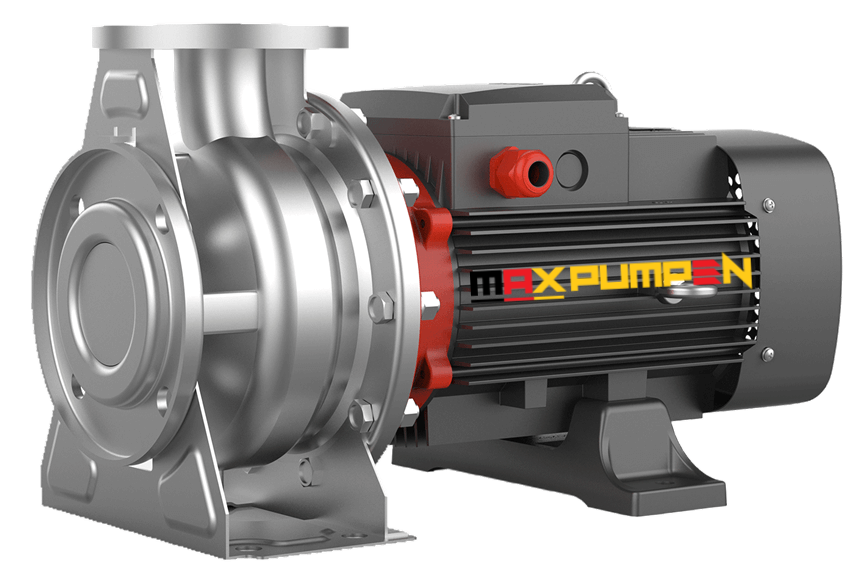

MAX PUMPEN End Suction Pump series features closed, semi-open, or open impellers and is powered by a standard electric motor. All pumps are equipped with a mechanical shaft seal from EagleBurgmann and ball bearings from SKF for long service life. Materials are available in cast iron, stainless steel (SS304), or duplex stainless steel. Each pump is mounted on a sturdy base plate for stable operation and easy installation.
– Paper Industry ( Open impeller )
– General industry
– Irrigation
– Sewage water ( Semi-Open impeller or Open impeller )
– H.V.A.C
– Cooling and chillers
– Fire-fighting equipment
– Reverse osmosis
– Swimming pool
– Agriculture
50 Hz
– Capacity: max. 2.000 m3/h
– Head: max. 150m
– Liquid temperature: 0°C to +120°C
– Sand content: max. 50g/m3
60 Hz
– Capacity: max. 2.200m3/h
– Head: max. 650m
– Liquid temperature: 0°C to +60°C
– Sand content: max. 50g/m3
